Kitchen Sink

%pip install --quiet git+https://github.com/patcon/valency-anndata@main

import os

if os.environ.get("IS_GENERATING_DOCS", None):
    from itables import init_notebook_mode
    init_notebook_mode(all_interactive=True) # (1)!

1. renders interactive tables for dataframes, which look really nice on the documentation website

---

import valency_anndata as val

# Sets default matplotlib render settings.
val.scanpy.settings.set_figure_params(dpi=50, facecolor="white")

# For setting per-figure render settings.
from matplotlib.pyplot import rc_context as plot_render_context

adata = val.datasets.polis.load("https://pol.is/report/r29kkytnipymd3exbynkd")
# These workl similarly to the above source:
#   - r29kkytnipymd3exbynkd
#   - https://pol.is/3hfmicmybc
#   - 3hfmicmybc
#
# NOTE: Technically, there are some differences between
# 1. data fetched from CSV exports (best source when we have report_id) and
# 2. data fetched from API endpoints (best we can do when we only have conversation_id)

# Show schematic diff from a fresh state.
val.viz.schematic_diagram(adata, diff_from=None) # (1)!

adata # (2)!

1. renders a visual version of our AnnData object (only partial summary for now)
2. renders a text version of our AnnData object with full summary

---

Data was gathered using the Polis software (see: https://compdemocracy.org/polis
and https://github.com/compdemocracy/polis) and is sub-licensed under CC BY 4.0
with Attribution to The Computational Democracy Project.
The data and more information about how the data was collected can be found at
the following link: https://pol.is/report/r29kkytnipymd3exbynkd

AnnData object with n_obs × n_vars = 2738 × 1045
    var: 'content', 'participant_id_authored', 'created_date', 'moderation_state', 'is_seed', 'is_meta', 'language_original', 'language_current', 'is_translated'
    uns: 'votes', 'votes_meta', 'statements', 'statements_meta', 'source', 'schema'
    layers: 'raw_sparse'

# Note the Spanish statements.
adata.var

Loading ITables v2.7.0 from the init_notebook_mode cell... (need help?)

Translate statements

# Translate all statements into a common language. Let's try English.
# We could have added this during initial loading:
#
#     adata = val.datasets.polis.load("<report url>", translate_to="en")
#
# Done using unofficial [Google Translate] APIs, so no auth required!
# See: https://github.com/ssut/py-googletrans
val.datasets.polis.translate_statements(adata, translate_to="en")

adata.var

Loading ITables v2.7.0 from the init_notebook_mode cell... (need help?)

Polis Recipe

polis_adata = adata.copy()

with val.viz.schematic_diagram(diff_from=polis_adata):
  # Normally recipe_polis writes PCA projects to X_pca_polis, but
  # we'll override key to X_pca for simplicity of plotting.
  # (If we don't override, we must use val.scanpy.pl.embedding to plot.)
  val.tools.recipe_polis(
      polis_adata,
      key_added_pca="X_pca",
      key_added_kmeans="kmeans_polis",
  )

polis_adata

/home/runner/work/valency-anndata/valency-anndata/.venv/lib/python3.10/site-packages/scanpy/preprocessing/_pca/__init__.py:226: FutureWarning: Argument `use_highly_variable` is deprecated, consider using the mask argument. Use_highly_variable=True can be called through mask_var="highly_variable". Use_highly_variable=False can be called through mask_var=None
  mask_var_param, mask_var = _handle_mask_var(

AnnData object with n_obs × n_vars = 2738 × 1045
    obs: 'cluster_mask', 'kmeans_polis'
    var: 'content', 'participant_id_authored', 'created_date', 'moderation_state', 'is_seed', 'is_meta', 'language_original', 'language_current', 'is_translated', 'zero_mask'
    uns: 'votes', 'votes_meta', 'statements', 'statements_meta', 'source', 'schema', 'X_pca_masked_unscaled', 'kmeans_polis'
    obsm: 'X_pca_masked_unscaled', 'X_pca'
    varm: 'X_pca_masked_unscaled'
    layers: 'raw_sparse', 'X_masked', 'X_masked_imputed_mean'

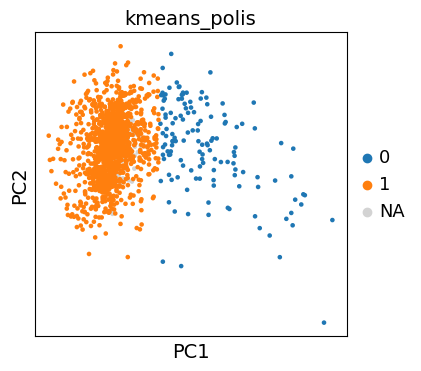

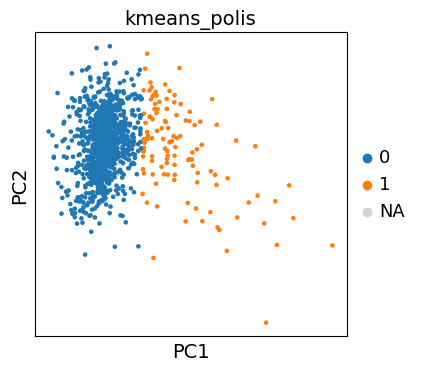

val.viz.pca(polis_adata, color="kmeans_polis")

polis_adata.obs["kmeans_polis"].value_counts(dropna=False)

Loading ITables v2.7.0 from the init_notebook_mode cell... (need help?)

Polis recipe: PaCMAP variant

from valency_anndata.tools._polis import _zero_mask, _cluster_mask

pacmap_adata = adata.copy()

with val.viz.schematic_diagram(diff_from=pacmap_adata):
  _zero_mask(pacmap_adata)
  _cluster_mask(pacmap_adata)
  val.preprocessing.impute(
    pacmap_adata,
    strategy="mean",
    source_layer="X_masked",
    target_layer="X_masked_imputed_mean",
  )
  val.tools.pacmap(
    pacmap_adata,
    layer="X_masked_imputed_mean",
  )
  val.tools.kmeans(
    pacmap_adata,
    init="polis", # BUG: fix this to accept kmeans++
    k_bounds=(2, 9),
    use_rep="X_pacmap",
    mask_obs="cluster_mask",
    key_added="kmeans_pacmap",
  )

pacmap_adata

AnnData object with n_obs × n_vars = 2738 × 1045
    obs: 'cluster_mask', 'kmeans_pacmap'
    var: 'content', 'participant_id_authored', 'created_date', 'moderation_state', 'is_seed', 'is_meta', 'language_original', 'language_current', 'is_translated', 'zero_mask'
    uns: 'votes', 'votes_meta', 'statements', 'statements_meta', 'source', 'schema', 'kmeans_pacmap'
    obsm: 'X_pacmap'
    layers: 'raw_sparse', 'X_masked', 'X_masked_imputed_mean'

val.preprocessing.calculate_qc_metrics(pacmap_adata, inplace=True)

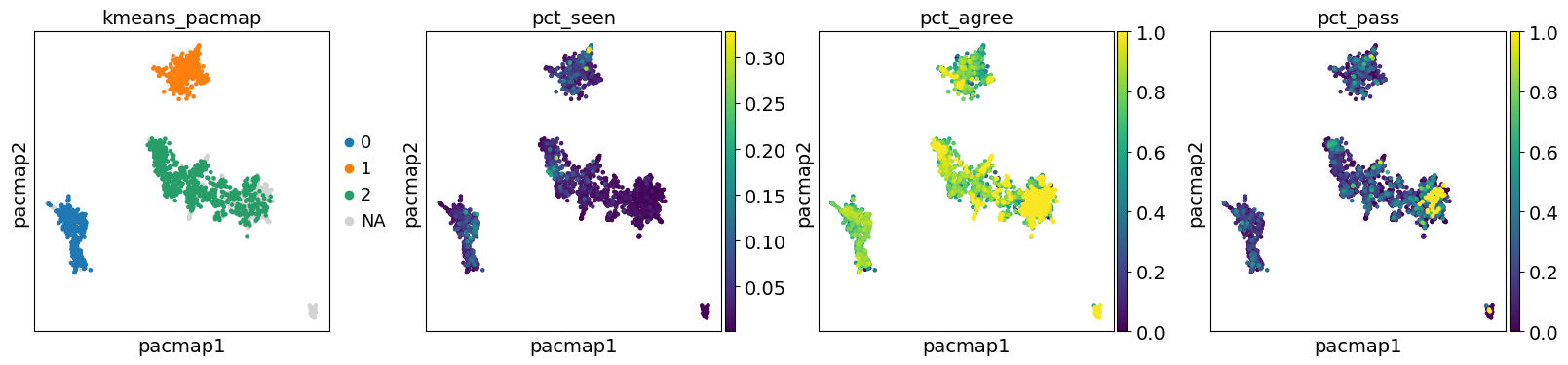

val.viz.embedding(
  pacmap_adata,
  basis="pacmap",
  color=["kmeans_pacmap", "pct_seen", "pct_agree", "pct_pass"],
)

Polis recipe: LocalMAP variant

localmap_adata = adata.copy()

with val.viz.schematic_diagram(diff_from=localmap_adata):
  _zero_mask(localmap_adata)
  _cluster_mask(localmap_adata)
  val.preprocessing.impute(
    localmap_adata,
    strategy="mean",
    source_layer="X_masked",
    target_layer="X_masked_imputed_mean",
  )
  val.tools.localmap(
    localmap_adata,
    layer="X_masked_imputed_mean",
  )
  val.tools.kmeans(
    localmap_adata,
    init="polis", # BUG: fix this to accept kmeans++
    k_bounds=(2, 9),
    use_rep="X_localmap",
    mask_obs="cluster_mask",
    key_added="kmeans_localmap",
  )

localmap_adata

AnnData object with n_obs × n_vars = 2738 × 1045
    obs: 'cluster_mask', 'kmeans_localmap'
    var: 'content', 'participant_id_authored', 'created_date', 'moderation_state', 'is_seed', 'is_meta', 'language_original', 'language_current', 'is_translated', 'zero_mask'
    uns: 'votes', 'votes_meta', 'statements', 'statements_meta', 'source', 'schema', 'kmeans_localmap'
    obsm: 'X_localmap'
    layers: 'raw_sparse', 'X_masked', 'X_masked_imputed_mean'

val.preprocessing.calculate_qc_metrics(localmap_adata, inplace=True)

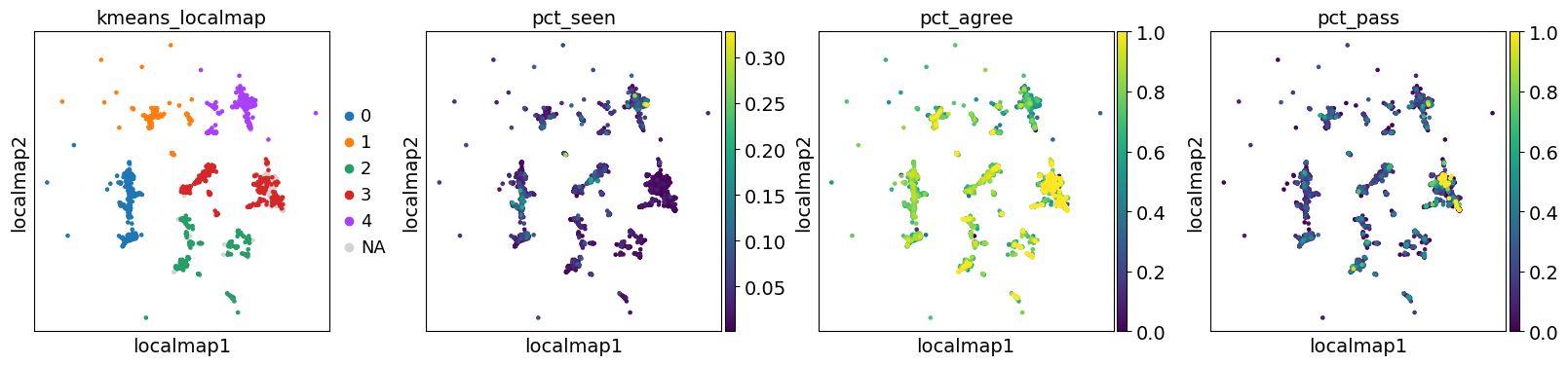

val.viz.embedding(
  localmap_adata,
  basis="localmap",
  color=["kmeans_localmap", "pct_seen", "pct_agree", "pct_pass"],
)

Quality Control Metrics

with val.viz.schematic_diagram(diff_from=adata):
  val.preprocessing.calculate_qc_metrics(adata, inplace=True)

PCA

# Prepare a rough Polis pipeline (not fully prepared)
val.preprocessing.impute(adata, strategy="mean")
val.tools.pca(adata, layer="X_imputed_mean")

# See how various participant QC metrics look.
# Participant rows are "observations", so use "obs" entries listed above.

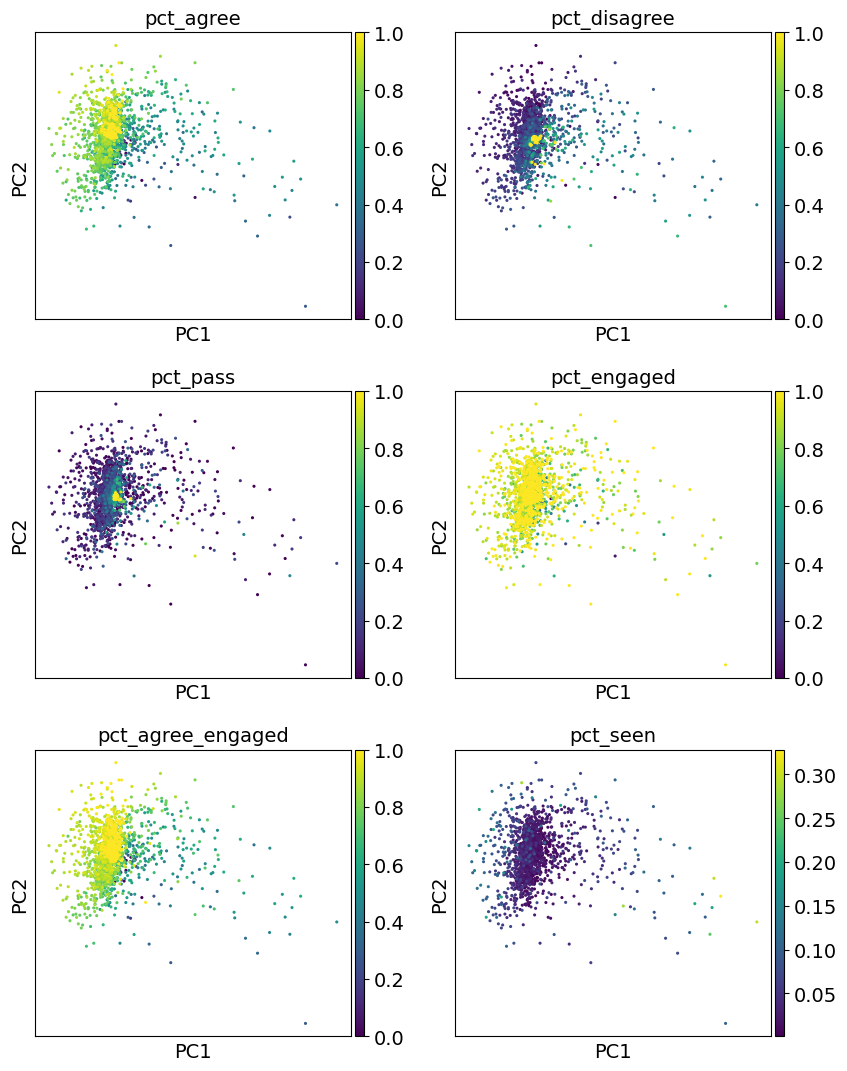

val.viz.pca(
    adata,
    color=['pct_agree', 'pct_disagree', 'pct_pass', 'pct_engaged', 'pct_agree_engaged', 'pct_seen'],
    ncols=2,
    size=20,
)

# Check out how different different principle components look.

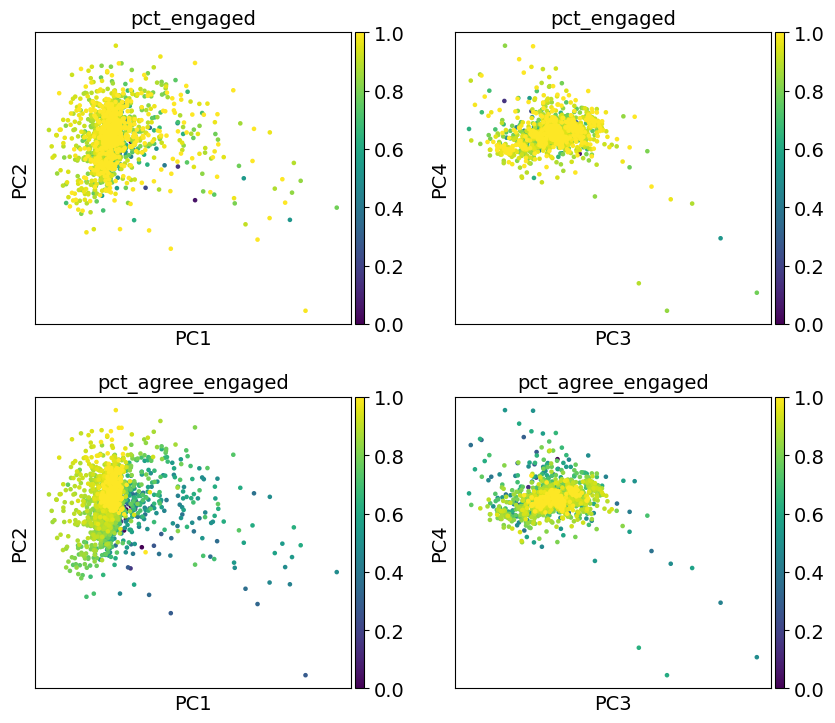

val.viz.pca(
    adata,
    color=['pct_engaged', 'pct_engaged', 'pct_agree_engaged', 'pct_agree_engaged'],
    dimensions=[(0, 1), (2, 3), (0, 1), (2, 3)],
    ncols=2,
)

Leiden Clustering

val.preprocessing.neighbors(adata)

/home/runner/work/valency-anndata/valency-anndata/.venv/lib/python3.10/site-packages/scipy/sparse/_index.py:210: SparseEfficiencyWarning: Changing the sparsity structure of a csr_matrix is expensive. lil and dok are more efficient.
  self._set_arrayXarray(i, j, x)

with val.viz.schematic_diagram(diff_from=adata):
  val.tools.leiden(adata, flavor="igraph")

UMAP

val.tools.umap(adata)

with plot_render_context({"figure.figsize": (10, 10), "figure.dpi": 50}):

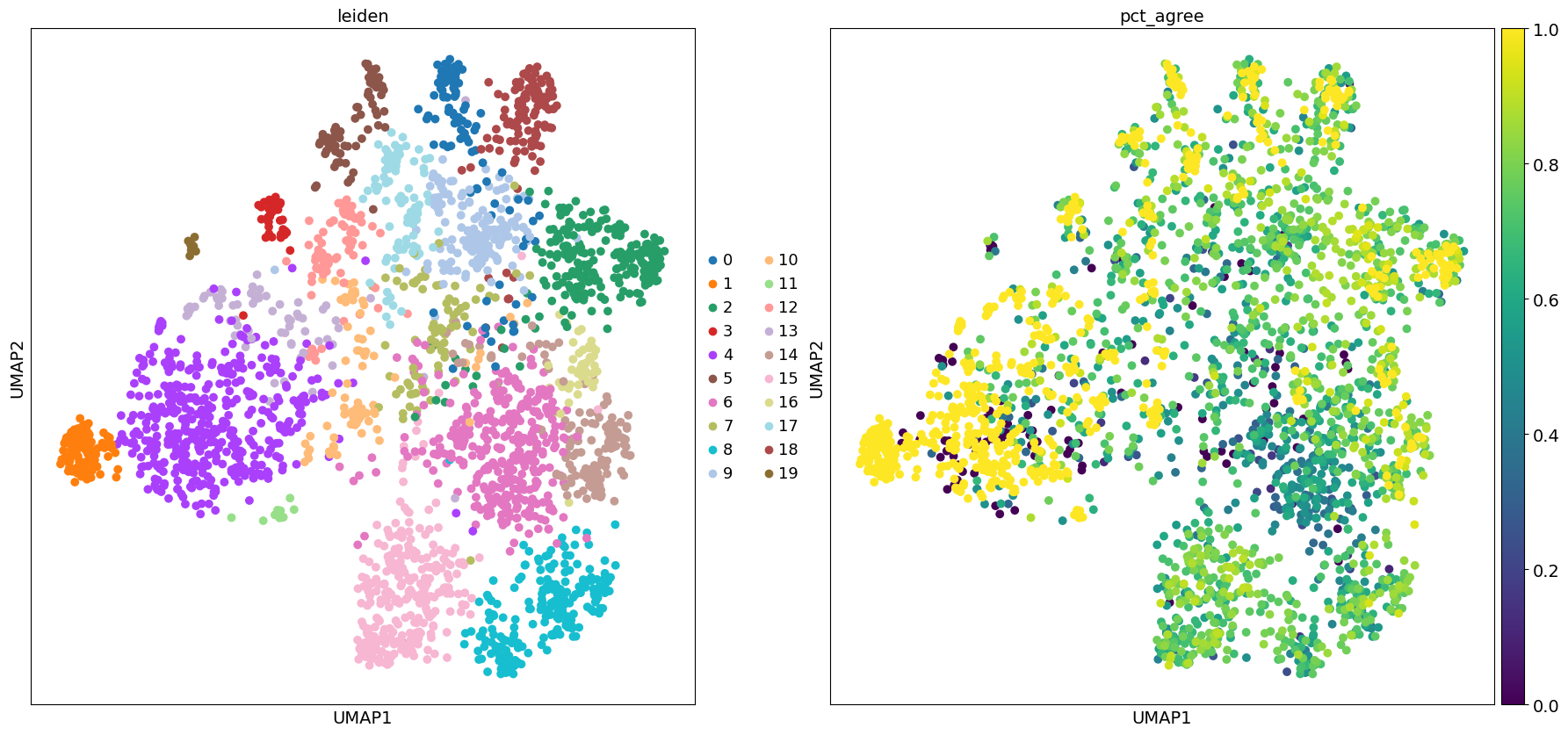

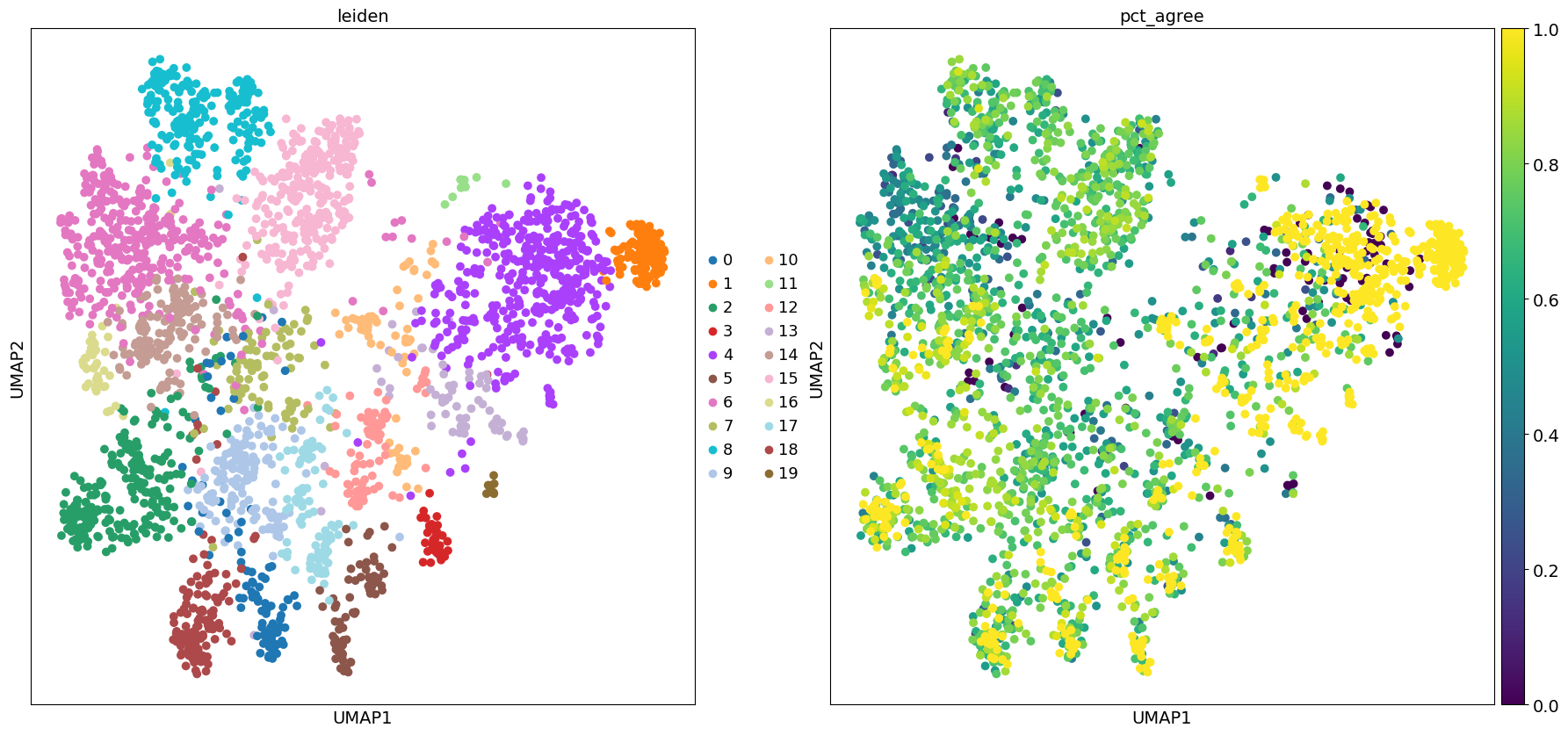

  val.viz.umap(adata, color=["leiden", "pct_agree"], size=200)

Langevitour

adata

AnnData object with n_obs × n_vars = 2738 × 1045
    obs: 'n_votes', 'n_agree', 'n_disagree', 'n_pass', 'n_engaged', 'pct_agree', 'pct_disagree', 'pct_pass', 'pct_engaged', 'pct_agree_engaged', 'pct_seen', 'mean_vote', 'leiden'
    var: 'content', 'participant_id_authored', 'created_date', 'moderation_state', 'is_seed', 'is_meta', 'language_original', 'language_current', 'is_translated', 'n_votes', 'n_agree', 'n_disagree', 'n_pass', 'n_engaged', 'pct_agree', 'pct_disagree', 'pct_pass', 'pct_engaged', 'pct_agree_engaged', 'pct_seen', 'mean_vote'
    uns: 'votes', 'votes_meta', 'statements', 'statements_meta', 'source', 'schema', 'pca', 'neighbors', 'leiden', 'umap', 'leiden_colors'
    obsm: 'X_pca', 'X_umap'
    varm: 'PCs'
    layers: 'raw_sparse', 'X_imputed_mean'
    obsp: 'distances', 'connectivities'

val.viz.langevitour(
    adata,
    use_reps=["X_umap", "X_pca[:10]"],
    color="leiden",
    initial_axes=["X_umap[0]", "X_umap[1]"],
)

Dreamcode

from IPython.display import Image, display

# When we are executing prospective functionality that hasn't yet been written,
# we wrap it in a conditional and in the meantime output a placeholder/mockup.
#
# Thanks to Gregor Martynus (gr2m) for concept: https://github.com/gr2m/dreamcode.io
def dreamcode_exists(placeholder_image=None):
  if placeholder_image:
    display(Image(url=placeholder_image, width=500))

  # Dreamcode never exists yet.
  return False

Loading Datasets

if dreamcode_exists():
  # See: https://github.com/patcon/universal-polis-wrapper/
  adata = val.datasets.polis.load(source="https://pol.is/2demo")
  # This would augment Polis conversation data by importing
  # participant data from a typeform into anndata's adata.obs DataFrame
  # by opportunistically joining the data via any matched xids
  val.datasets.import_typeform(adata, typeform_id="wFXxYRdJ")

# Inspiration: https://scanpy.readthedocs.io/en/stable/api/datasets.html

if dreamcode_exists():
  # This would be a variant where likert scale data is loaded.
  #     - this would use `val.preprocessing.convert_likert` (see below)
  #     - this could either augment polis conversation data, or be used in lieu
  #       of Polis data, processing all data from Typeform responses.
  #
  # See: https://github.com/polis-community/red-dwarf/issues/89
  val.datasets.import_typeform(adata, typeform_id="wFXxYRdJ", likert_conversion=True)
  val.datasets.import_typeform(adata, typeform_id="wFXxYRdJ", likert_conversion="liberal")
  val.datasets.import_typeform(adata, typeform_id="wFXxYRdJ", likert_conversion="conversative")

  # Extract polislike valence data from CIP Global Dialogues on AI.
  #     - citizens of many countries surveyed over time.
  #     - pre-generated synthetic agree/disagree/pass data.
  #
  # See: https://globaldialogues.ai/about
  # See: https://globaldialogues.ai/download-data
  adata = val.datasets.load_cip_global_dialogues()

  # Extract polislike valence data from UTokyo Asahi Survey (UTAS).
  #     - pre-election survey of both voters and electoral candidates.
  #     - long history, running most years since 2003.
  #     - media collaboration gives rare high rate of politician responses.
  #     - repeats a substantial number of questions across survey waves.
  #
  # See: https://www.masaki.j.u-tokyo.ac.jp/utas/utasindex_en.html
  # See: https://github.com/nishio/UTAS-UMAP
  adata = val.datasets.load_utokyo_asahi_survey()

  # Extract polislike valence data from Convert World Values Survey (WVS).
  #     - well-known repeated survey of Swartz human values.
  #     - can specify data subset in various ways for convenience.
  #
  # See: https://www.worldvaluessurvey.org/WVSContents.jsp
  adata = val.datasets.load_world_values_survey(wave=8)
  adata = val.datasets.load_world_values_survey(years=1997)

  # Extract polislike valence data from European Social Survey (ESS).
  #     - well-known repeated survey of Swartz human values.
  #     - has sections also focussed on current events.
  #     - can specify data subset in various ways for convenience.
  #
  # See: https://ess.sikt.no/en/series/321b06ad-1b98-4b7d-93ad-ca8a24e8788a
  # See: https://github.com/ropensci/essurvey/issues/57#issuecomment-3643483042
  adata = val.datasets.load_european_social_survey(round=11)

Preprocessing

if dreamcode_exists():
  # Process likert scale data into polislike/valence data. e.g., -1/0/+1
  #     - there are different ways to convert likert scales:
  #       - liberal: 12345 => DDPAA
  #       - strict: 12345 => DPPPA
  #     - there might be clever, per-participant ways to deduce thresholds
  #     - this is used as basis of processing many other datasets
  val.preprocessing.convert_likert(vote_data, conversion_scheme="DDPAA")

if dreamcode_exists():
  # Inspiration: https://scanpy.readthedocs.io/en/stable/generated/scanpy.pp.calculate_qc_metrics.html
  pbmc.var["mito"] = pbmc.var_names.str.startswith("MT-")
  sc.pp.calculate_qc_metrics(pbmc, qc_vars=["mito"], inplace=True)
  sns.jointplot(
      data=pbmc.obs,
      x="log1p_total_counts",
      y="log1p_n_genes_by_counts",
      kind="hex",
  )
  sc.pp.calculate_qc_metrics(adata, qc_vars=["mt", "ribo", "hb"], inplace=True, log1p=True)

PCA

# Inspiration: https://scanpy.readthedocs.io/en/stable/tutorials/basics/clustering.html#dimensionality-reduction

if dreamcode_exists("https://imgur.com/N7K3cgf.png"):
  # Inspiration: https://scanpy.readthedocs.io/en/stable/generated/scanpy.pp.pca.html
  val.tools.pca(adata)
  # Inspiration: https://scanpy.readthedocs.io/en/stable/api/generated/scanpy.pl.pca_variance_ratio.html
  val.viz.pca_variance_ratio(adata, n_pcs=50, log=True)

UMAP

if dreamcode_exists("https://imgur.com/t7G45jo.png"):
  # Inspiration: https://scanpy.readthedocs.io/en/stable/tutorials/basics/clustering.html#nearest-neighbor-graph-construction-and-visualization
  # Inspiration: https://scanpy.readthedocs.io/en/stable/api/generated/scanpy.pp.neighbors.html
  val.preprocessing.neighbors(adata)
  # Inspiration: https://scanpy.readthedocs.io/en/stable/generated/scanpy.tl.umap.html
  val.tools.umap(adata)
  # Inspiration: https://scanpy.readthedocs.io/en/stable/api/generated/scanpy.pl.umap.html
  val.viz.umap(
      adata,
      color="kmeans",
      # Setting a smaller point size to get prevent overlap
      size=2,
  )

DataMapPlot

if dreamcode_exists("https://imgur.com/IfrR6vp.png"):
  # See:
  # See: https://github.com/TutteInstitute/datamapplot/blob/main/doc/basic_usage.ipynb
  val.viz.datamapplot(
      adata,
      map_of="participants",
      basis="umap",
      color="kmeans",
  )

if dreamcode_exists("https://imgur.com/IfrR6vp.png"):
  # See: https://github.com/TutteInstitute/datamapplot/blob/main/doc/interactive_intro.ipynb
  val.viz.datamapplot(
      adata,
      map_of="statements",
      basis="umap",
      color="kmeans",
      interactive=True,
  )

Talk to the City

if dreamcode_exists("https://imgur.com/daYtomz.png"):
  # See: https://github.com/AIObjectives/tttc-light-js/blob/dd6e11f9bb62215a9c5c6caeaf799d1c2f97745a/pyserver/config.py
  val.tools.talktothecity.generate_synthetic_reactions(adata)
  # Examples: https://takahiroanno2024.github.io/tokyoai-analysis/
  val.tools.talktothecity.generate_report(adata)

Perspective Explorer

if dreamcode_exists("https://imgur.com/yVOG22g.png"):
  # Prototype widget: https://colab.research.google.com/drive/1PNlxdBiZbgfoSQke6KEcssIQahyE7dyz#scrollTo=97mTbHoxJNrS
  val.viz.perspective_explorer(
    adata,
    use_reps=[
      "X_mean_pca", "X_mean_pacmap", "X_mean_localmap",
      "X_knn5d_pca", "X_knn5d_pacmap", "X_knn5d_localmap",
    ],
    color_presets_basis=["kmeans", "hdbscan"],
    metrics=["pct_seen", "X_pca[:10]", "hubness"]
  )

Extract & Render Geographic Data

if dreamcode_exists("https://imgur.com/0dQuYJW.png"):
  # 1. Use an LLM to analyse all the statements of indications of geographic boundaries.
  # 2. Search Open Street Map for boundaries, and then extract via API and process.
  # 3. Choose the best representation of a boundary for each participant.
  # 4. Add centroid as latlon to adata.obsm["geospatial"]
  # See: https://github.com/patcon/kedro-polislike-pipelines/issues/1
  # See: https://main--68c53b7909ee2fb48f1979dd.chromatic.com/iframe.html?id=components-app-kedro-mode--kedro-mode-with-animation&args=kedroBaseUrl%3Ahttps__COLON____SLASH____SLASH__patcon__DOT__github__DOT__io__SLASH__kedro-polislike-pipelines-san-juan-islands__SLASH__&viewMode=story
  val.tools.extract_geo_boundaries(adata)
  val.viz.perspective_explorer(adata, use_reps=["X_mean_pca", "X_mean_localmap", "geospatial"])

Visualize Annotated Matrices

val.viz.schematic_diagram(adata)

if dreamcode_exists("https://imgur.com/Mm7Ejmx.png"):
  # TODO:
  #   - [x] render .obs, .var and .X blocks
  #   - [x] render .obs and .var labels
  #   - [x] render .layers (variants of .X)
  #   - [ ] render .uns (unstructured data)
  #   - [x] render .obsm (other representations of obs)
  #     - e.g., X_pca, X_umap
  #   - [ ] render .varm (other representations of var)
  #   - [x] render visual diffs
  updated_adata = val.viz.some_action(adata, inplace=False)
  val.viz.schematic_diagram(updated_adata, diff_from=adata)
